JBL

C508GTi

Details
Variations

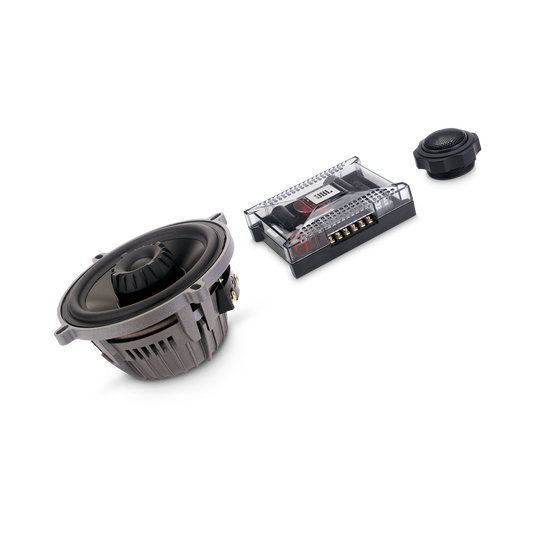

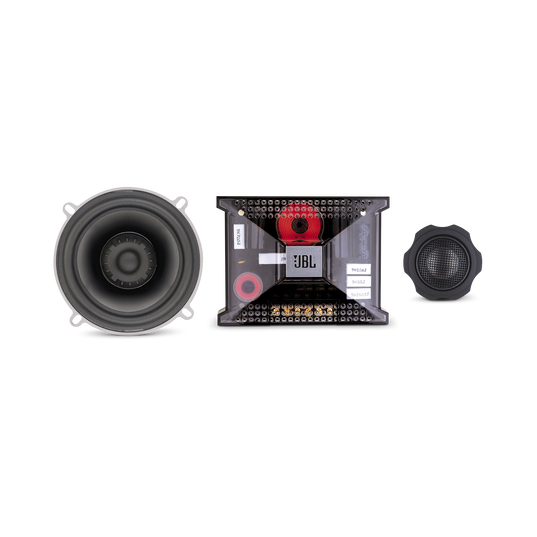

5-1/4" (130mm) 2-Way Component System



JBL GTi component systems originate in a decades-long passion for studio accuracy and concert impact. Their design demonstrates the technical acumen required to sculpt sound with grace for car cabin acoustics. Here are several of the key technologies that help GTi deliver an incredible listening experience.

Item# C508GTI-H

General Specifications

Power handling 125W RMS, 500W peak
Frequency response 58Hz – 21kHz
Sensitivity 88dB
System impedance 4 ohms
Voice-coil diameter woofer – 2" (50mm) edge-wound; tweeter – 1" (25mm)
Mounting depth woofer – 2-3/8" (61mm); tweeter – 1-1/8" (29mm)

Dimensions

Overall diameter woofer – 5-1/4" (133mm); tweeter – 2-1/16" (53mm)
Cutout diameter woofer – 4-5/8" (118mm); tweeter – 1-3/4" (45mm)
Crossover dimensions (L x W x H) 6" x 4-1/2" x 1-3/4" (153mm x 115mm x 45mm)
