JBL 4312G
The JBL 4312G is a 3-way, high-performance compact studio monitor in the iconic JBL configuration dating back to 1968. The latest in line of top-notch bookshelf speakers inspired by the legendary Model 4310 Control Monitor, the 4312G delivers thundering bass, with dynamic and clear highs for a thoroughly enjoyable audio experience.
Variations
Features
1-inch Magnesium-Aluminum alloy dome tweeter mated to acoustic lens waveguide.
12-inch (300mm) cast-frame, white pure-pulp cone woofer with front-firing tuned port.
5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.
High-frequency and mid-frequency level attenuators.
Advanced crossover network.
Mirror-imaged stereo pairs.

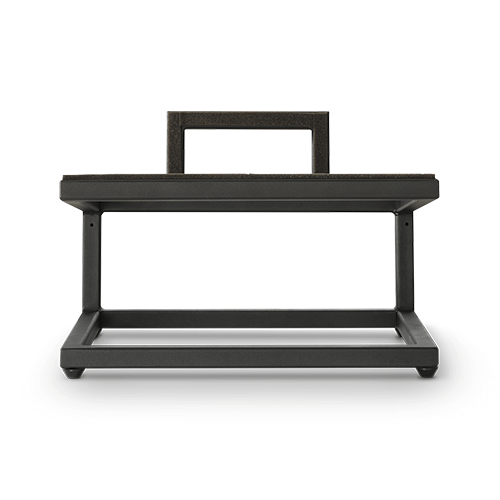

Recommended JS-120 speaker stands (sold separately).
Specs & Downloads
Item# JBL4312GWHT
Product Description
JBL 4312G
The JBL 4312G is a 3-way, high-performance compact studio monitor in the iconic JBL configuration dating back to 1968. The latest in line of top-notch bookshelf speakers inspired by the legendary Model 4310 Control Monitor, the 4312G delivers thundering bass, with dynamic and clear highs for a thoroughly enjoyable audio experience.
General Specifications
Low Frequency Transducer
12-inch (300mm) pure pulp cone woofer
Mid Frequency Transducer
5-inch (125mm) polymer-coated pure pulp cone
High Frequency Transducer
1-inch (25mm) Magnesium/Aluminum alloy dome tweeter with waveguide
Recommended Amplifier Power
10~200 Watts RMS
Frequency Response
(-6dB) 44Hz~40kHz
Sensitivity
(2.83V@1m) 90dB
Nominal Impedance
6 Ohm
Crossover Frequencies
640Hz, 5kHz
Enclosure Type
Bass-reflex via front-firing port
Inputs
Five-way Binding Posts
Finishes
White Woodgrain with Black Cloth Grille
Dimensions (H x W x D)
23.5 x 14.25 x 12 inches (597 x 362 x 305mm)
Weight
52.4 lbs (23.8kg) each
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
