Arena 8IW
JBL ARENA8IW

Arena 8IW

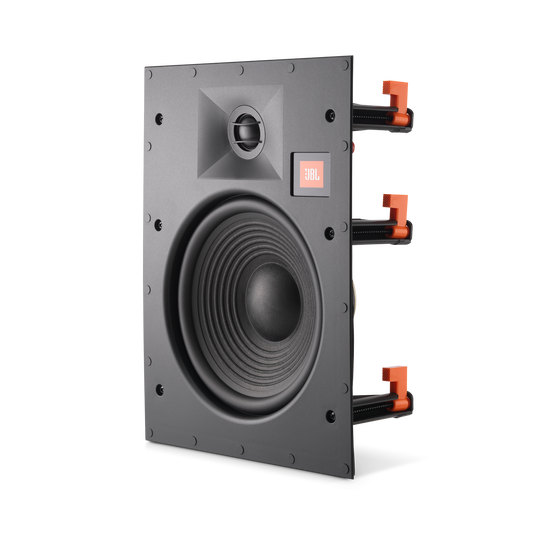

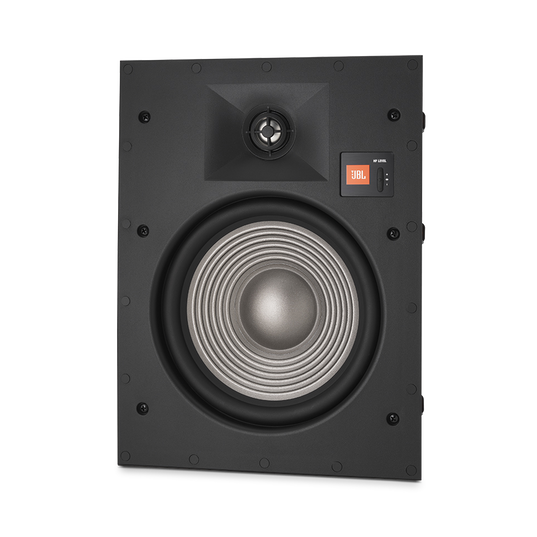

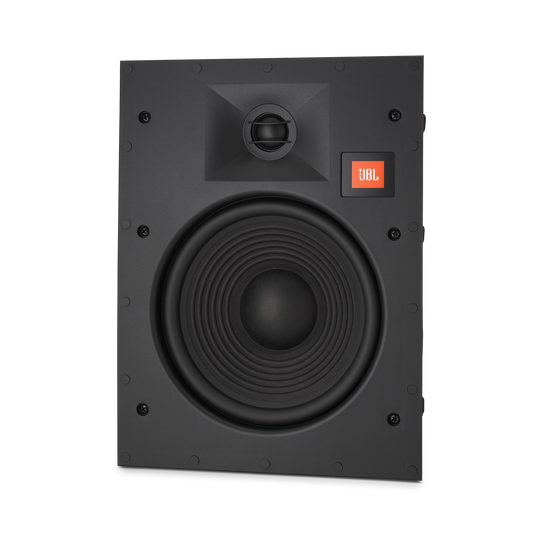

8-Inch In-Wall Loudspeaker

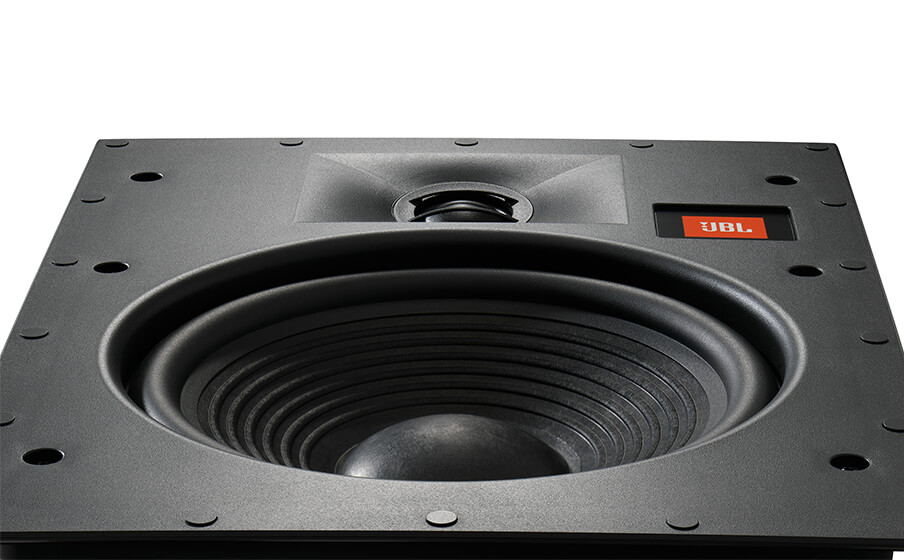

The JBL Arena 8IW features a 1-inch silk dome tweeter with a waveguide to ensure smooth and even coverage across the listening position. An 8-inch Polycellulose woofer provides the low end energy to immerse you in room-filling sound. Installation is simple and quick with the XL-2 mounting mechanism and the zero-bezel magnetically attached grille allows the loudspeaker to discreetly blend into any decor.
Variations

Features

Sound Inspired by JBL's lengendary M2 Master Reference Monitor

Sound Inspired by JBL's lengendary M2 Master Reference Monitor

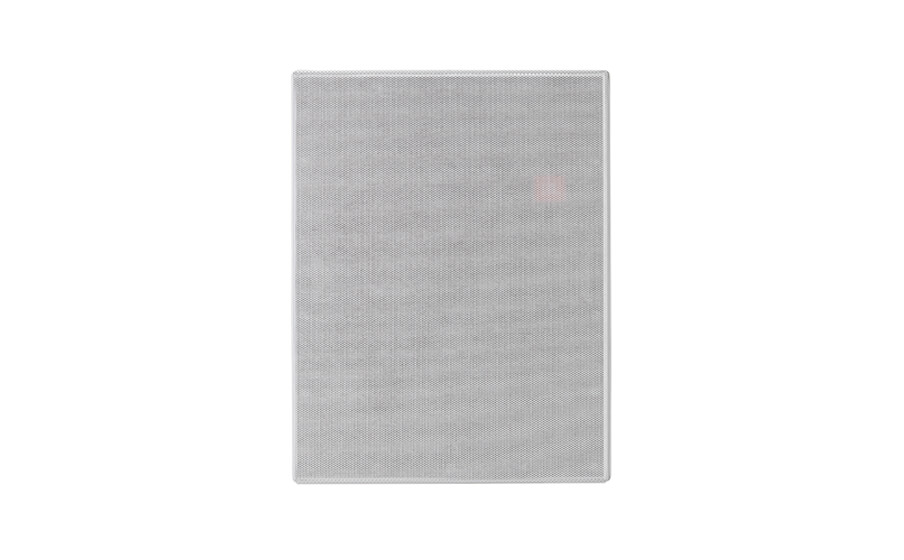

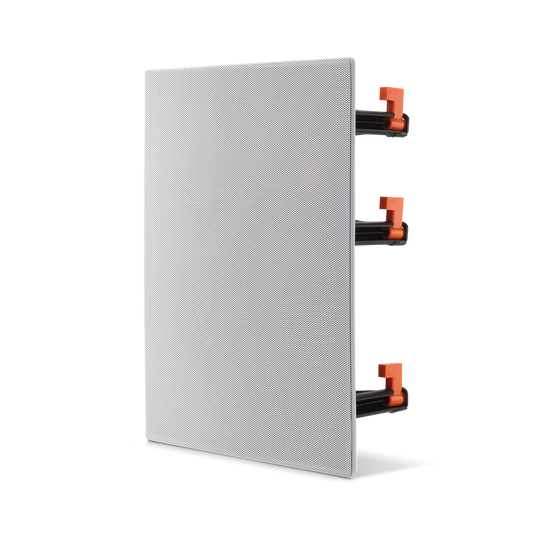

Paintable, nearly invisible zero-bezel magnetic grill

Paintable, nearly invisible zero-bezel magnetic grill

Superior XL-2 installation bracket

Superior XL-2 installation bracket

Specs & Downloads

Item# ARENA8IW

Product Description

Arena 8IW

The nearly invisible JBL Arena architectural series speaker, seamlessly built into your custom home audio installation, immerses you in full, room-filling JBL sound.

General Specifications

Mounting Depth 3-13/16" (97mm)
Compatible Wall Material Thickness 0.5" – 2.0" (130mm – 250mm)
Shipping Units of Measure Each
Warranty 5 Years
Pre-Construction Bracket Part number PCK8
Back Box Part Number FBB8

Audio Specifications

Impedance 8 ohms
Recommended Amplifier Power 100W
Frequency Response 30Hz - 20kHz
Loudspeaker Sensitivity:88dB 2.83V @ 1m Yes
Low Frequency Driver Size and Material 8" (203mm) Polycellulose Woofer
High Frequency Driver Size and Material 1" (25mm) Silk-Dome Tweeter

Dimensions

Cutout Dimensions (H x W)
Grille Finished Dimensions (H x W)

What's in the box?

  • Main Unit
  • Magnetic Grill
  • Owners Manual
  • Printed Mounting Template
  • Warranty Card
