Features
Portable and Easy to Use
The EON206P is light enough to carry in one hand. Weighing in at only 25lbs, anyone can juggle an instrument and our personal p.a. system at the same time.
JBL Professional Sound quality

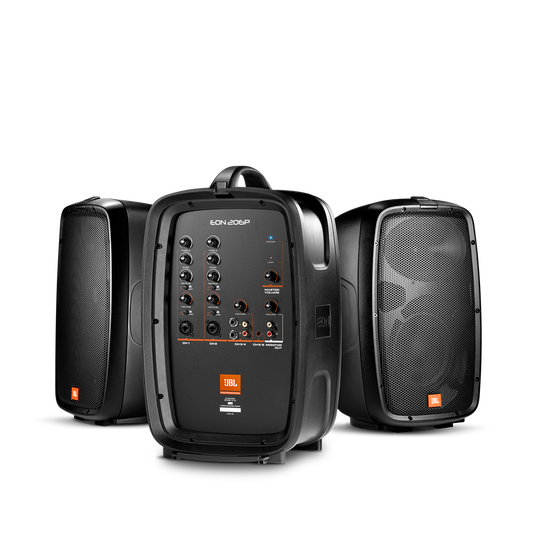

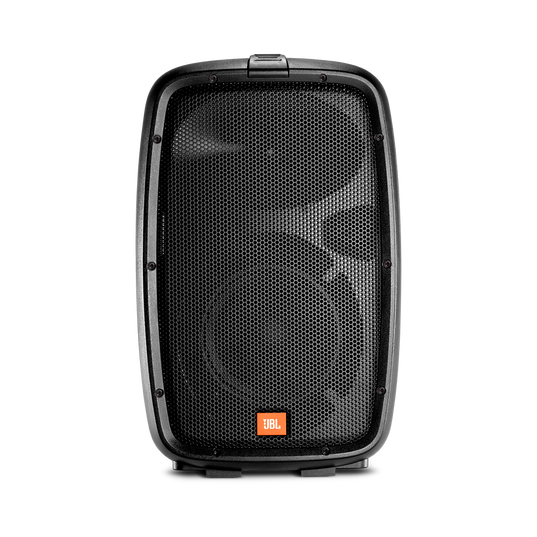

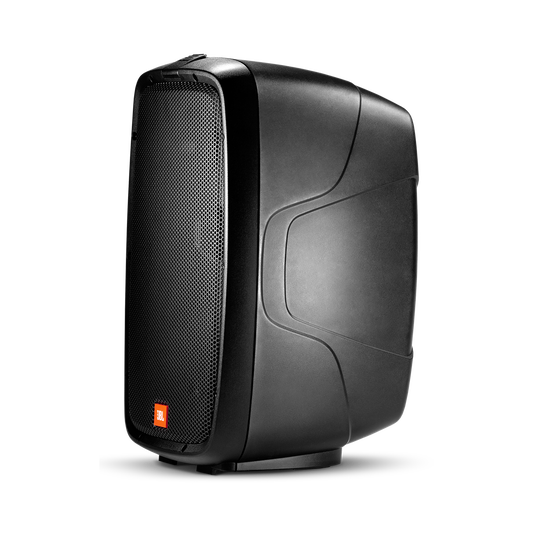

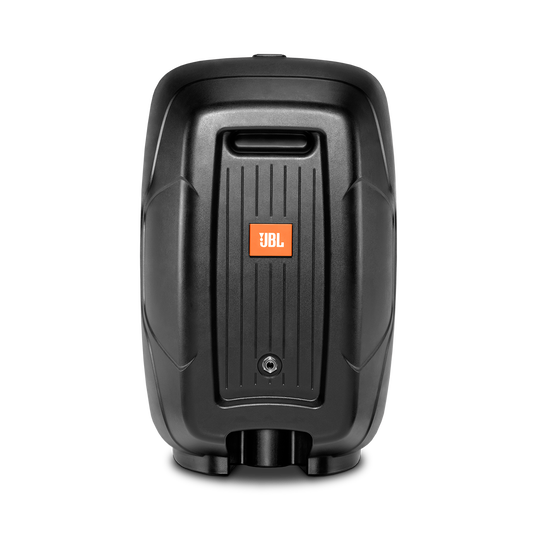

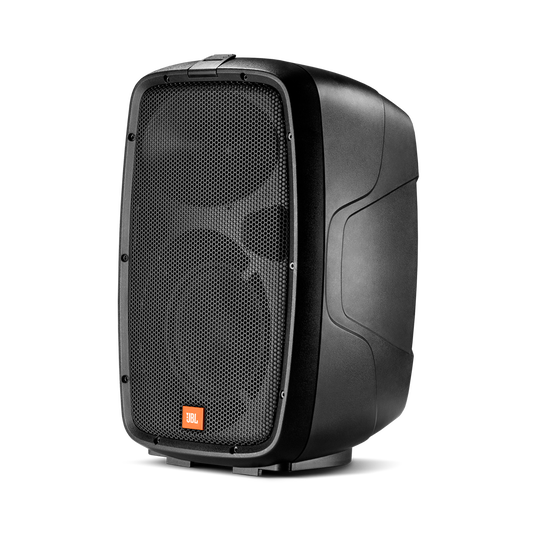

The EON206P consists of two 6.5-inch, two-way, powered loudspeakers and a detachable powered mixer with an enclosed storage compartment, one pair of unshielded speaker cables and a power cord.

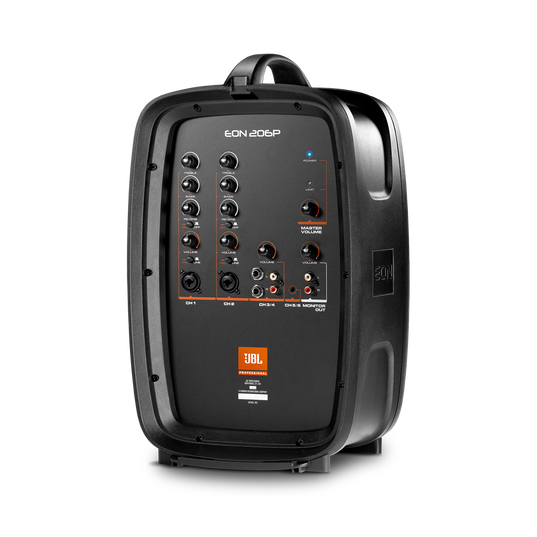

Powered, feature driven input mixer panel
Take crystal clear calls from your speaker with the touch of a button thanks to the noise and echo-cancelling speakerphone.
Specs & Downloads
Item# JBL EON206P
Product Description
Professional Audio Made Simple
The EON206P is a self-contained, portable PA system featuring multiple input channels with individual tone controls, reverb and convenient sound output capabilities that allow the user to integrate the system into any number of audio environments. With its lightweight and ergonomic design, the EON206P is an easy to use, lightweight package with un-compromised sound quality. Whether you’re a musician, singer, DJ, teacher or anyone in need of a truly compact and portable system, the EON206P has all the features you need to deliver your message.
General Specifications
System Type
2 Self powered 6.5”, two-way, bass-reflex
Max SPL Output
113 dB
Frequency Range (-10dB)
64Hz – 22kHz
Frequency Response (-3dB)
77Hz – 20kHz
Coverage Pattern
100° x 80°
Amplifer Design
Class D
Power Rating
160 W (2 X 80W)
Package Dimensions (H x W X D, mm)
530 x 705 x 340
Package Dimensions (H x W x D, inch)
20.9” X 27.8” x 13.4”
Net Weight
11.38 kg (25 lbs)

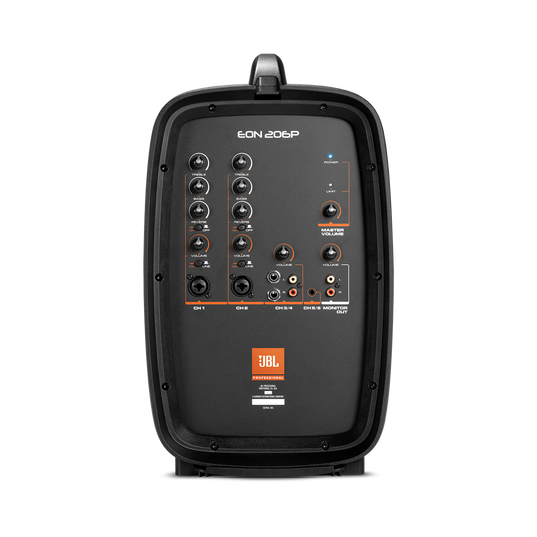

EON206 POWERED MIXER
Yes
Input Connectors
6 inputs (2 Mono Mic/Line, 2 x Stereo)
Channels
1-2 are XLR / 1/4” jack combo connectors, XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack
Input Impedance
Ch 1-2 Combo
Ch 1-2 Combo
TRS 40 K Ohms Balanced
Ch 3-4
TRS 20 K Ohms Balanced
Ch 3-4
RCA 5 K Ohms Unbalanced
Ch 5-6
3.5 mm 10 K Ohms Unbalanced
Output Connectors
Monitor outputs:
one pair of RCA jacks (stereo)
Yes
Signal Indicators
Limit:
Yellow LED indicates limiter active condition
Yes
EQ
Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
System Limiter
On Board DSP Limiting and Tuning
What's in the box?
- 1 x JBL EON 206P
- 2 x JBL professional speakers
- 1 x Center housing with powered mixer and compartment for storage of speaker cables
- 1 x Pair of unshielded speaker cables
- 1 x Power cable
- 1 x User's guide
