JBL

JBL LSR310S

Details
Variations

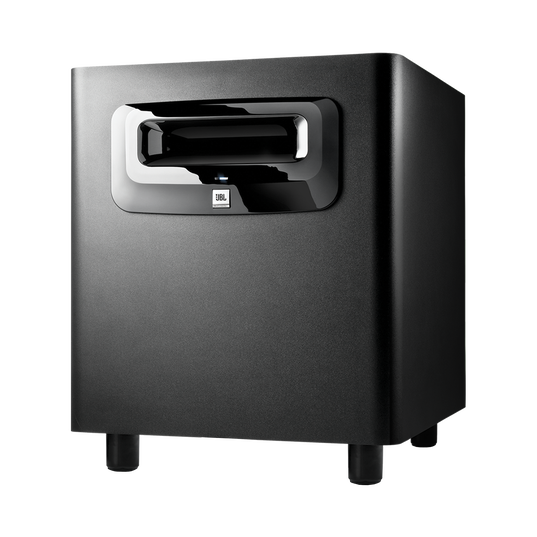

10" Powered Studio Subwoofer

Powered studio monitor

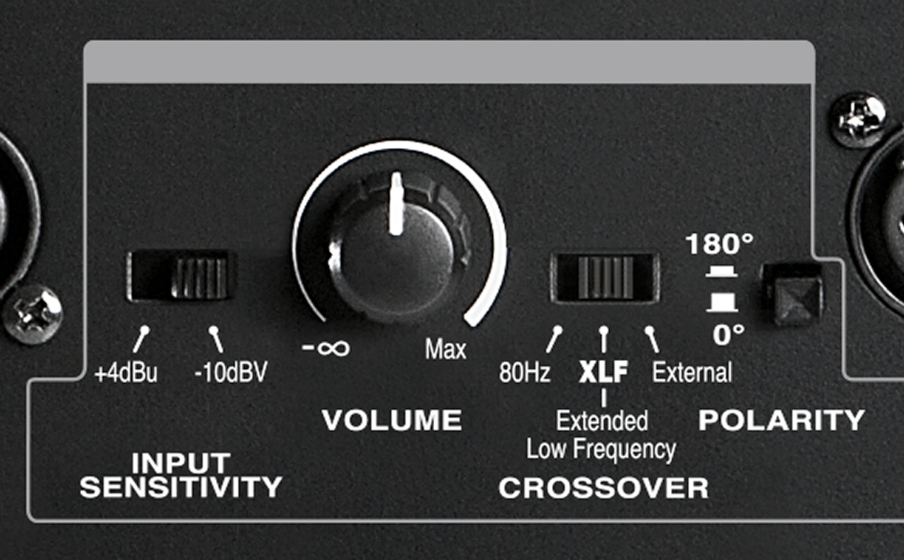

Extend your system LF all the way down! The LSR310S subwoofer incorporates JBL’s patented Slip Stream™ Port working in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. A JBL first, the XLF Extended Low Frequency setting lets you hear your tracks with the augmented bass tuning used in today’s dance clubs. Producing extended low frequency into the 20 Hz region, the LSR310S is the perfect match for the LSR305 and LSR308 Studio monitors.

Item# LSR310S

General Specifications

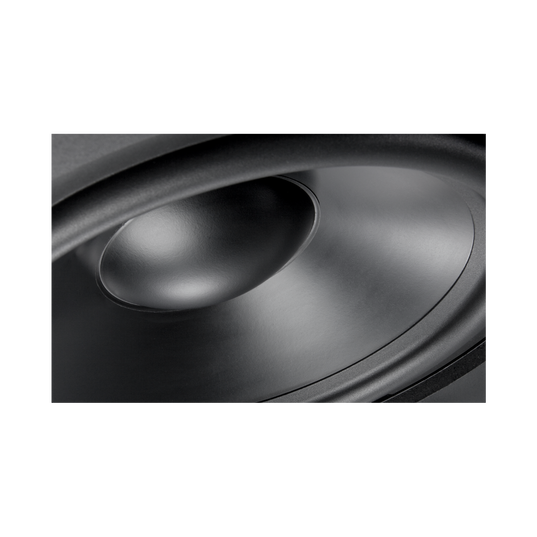

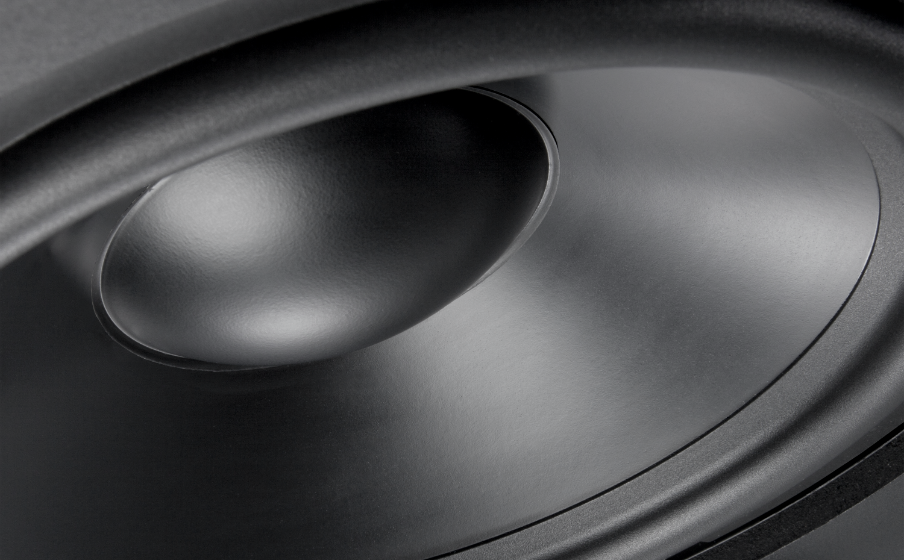

Driver 250mm (10-inch) High-Excursion, Down-Firing
Low Frequency Extension 27 Hz
Max Peak SPL 113 dB
Amplifier Power 200 W CLass D

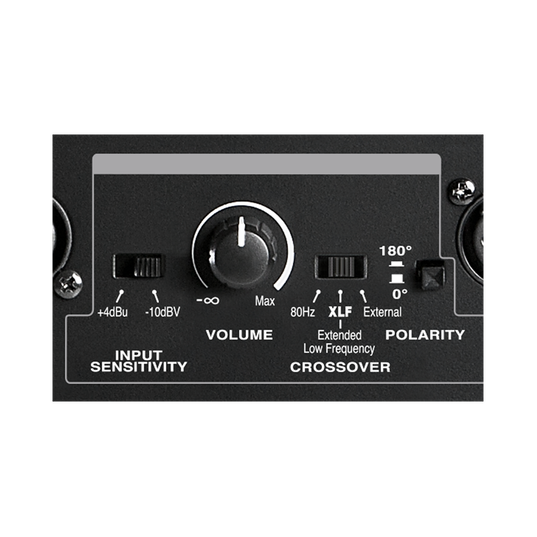

Crossover Settings 80 Hz, XLF, External
Inputs 2 x XLR, 2 x TRS Balanced
Outputs 2 x XLR
Maximum Peak Input Level +20.3 dBu
AC Voltage 100-240 VAC +/- 10% 50/60 Hz

Dimensions

Height 17.65 in (448 mm)
Width 15 in (381 mm)
Depth 15.65 in (398 mm)
Weight 34.3 lbs (15.6 kg)
  • 1 x LSR310S Subwoofer
  • 1 x Power Cord
  • 1 x Quick Set Up Guide

Manuals & Downloads

The latest owner's manuals, quick start guides, and documents.
