HDI-1200P
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1200P is the foundation of a complete HDI Series surround system. This powered subwoofer features a 12-inch (300mm) Poly-plas™ cone woofer driven by a 1,000 Watt amplifier for powerful dynamics and incredibly accurate sound reproduction.
Variations
Features
Advanced 1,000 Watt RMS amplifier.
12-inch (300mm) Poly-plas™ cast-frame subwoofer.
Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.
Dual down-firing, computer-optimized flared ports.

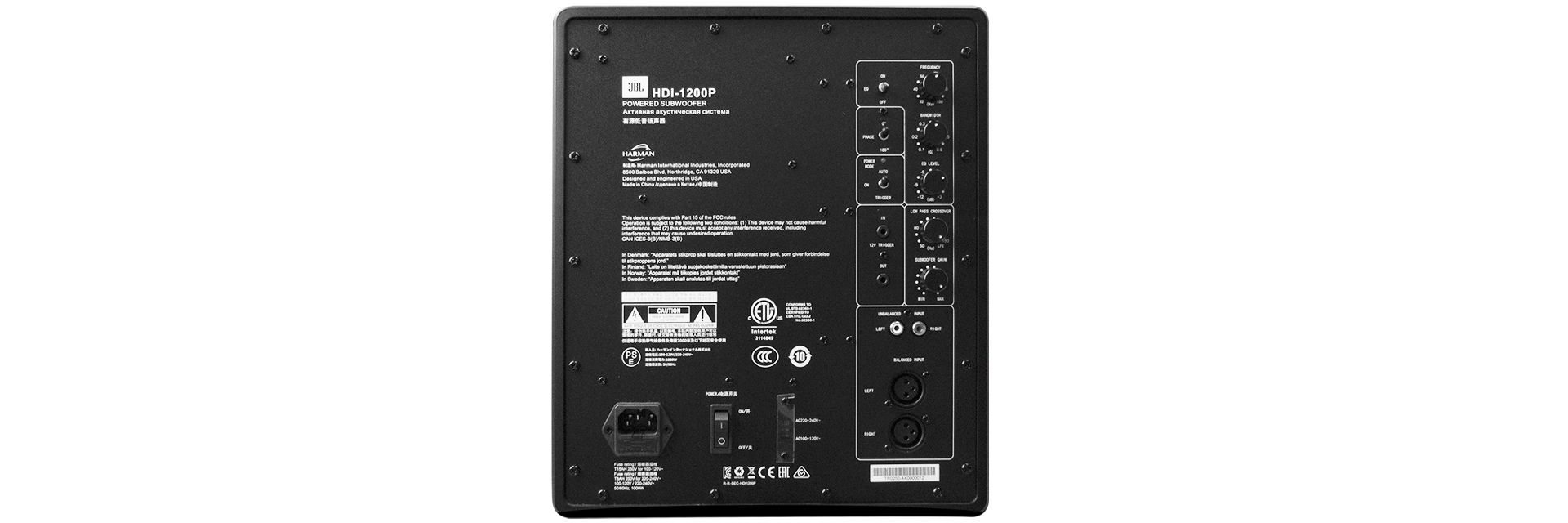

Compliment of controls.
RCA or XLR line-level inputs.
Black cloth, magnetically attached grille.
Specs & Downloads
Item# JBLHDI1200PWALAS
Product Description
HDI-1200P
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1200P is the foundation of a complete HDI Series surround system. This powered subwoofer features a 12-inch (300mm) Poly-plas™ cone woofer driven by a 1,000 Watt amplifier for powerful dynamics and incredibly accurate sound reproduction.
General Specifications
Low Frequency Driver
12” (300mm) black Poly-plas™, cast-frame woofer
Recommended Amplifier Power
1000W rms
Crossover Frequency
50Hz – 150Hz (variable) 24dB/octave
Frequency Response
28Hz – 150Hz (-6dB)
Enclosure Type
Bass-reflex design with down-firing ports
Power Requirements
100V – 240V 50/60Hz
Power Consumption (idle/max)
<0.5W (standby)
Power Consumption (idle/max)
1180W/7.7A(max-230Vac)
Power Consumption (idle/max)
1230W/12.87A(max-120Vac)
Power Consumption (idle/max)
1190W/15.97A(max-100Vac)
Dimensions (H x W x D)
16.95 x 16.3 x 17.77” (430.5 x 414 x 451.3mm)
Net Weight
70.8 lbs (31.79kg)
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
