Features
Big Bass, Small Space
JBL BassPro Nano delivers bumping bass and takes up little space. The on-board 100Wrms amplifier has been performance matched to subwoofer to deliver the amount of clear, tight bass.
Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassPro Nano employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

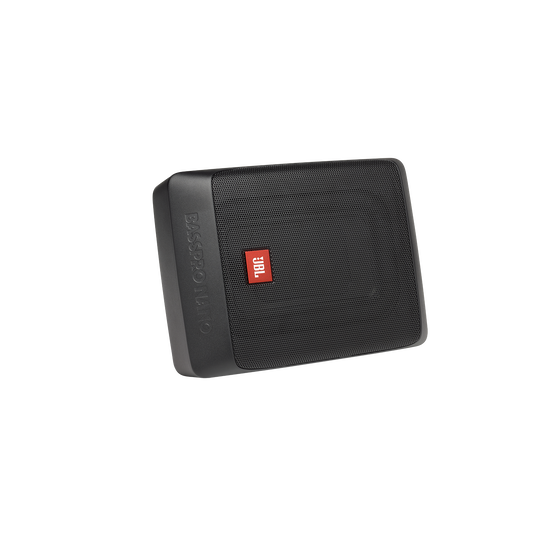

Die-Casting Aluminum Enclosure Design
The rugged all-die-cast aluminum enclosure design in anodized textured matte black not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.
Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.
Specs & Downloads
Item#: SUBBPNANO
Product Description
Deep Bass Without Taking Up Space

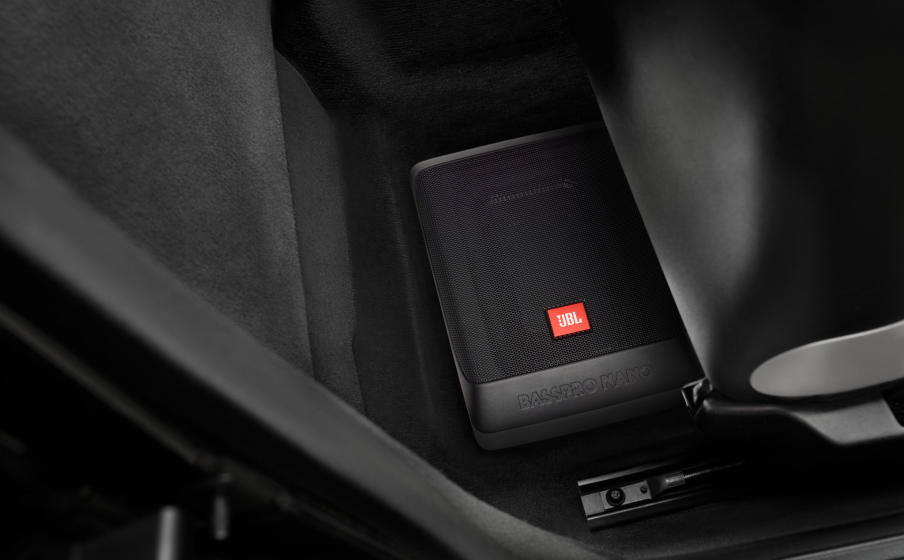

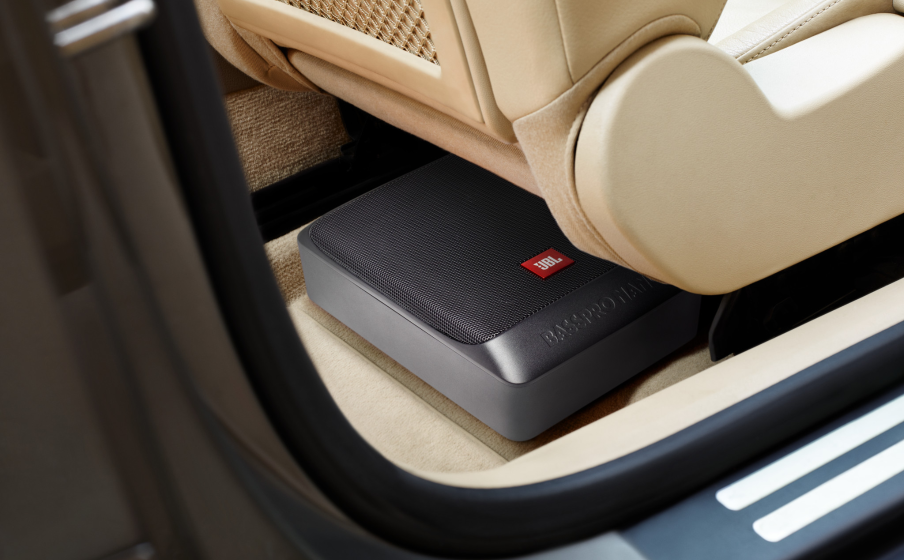

JBL's BassPro NANO delivers deep bass and takes up little space. JBL's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Its rugged all-die-cast aluminum enclosure with anodized textured matte black finish, which looks great. Powered by a 100Watt Amplifier, BassPro Nano delivers punchy, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.
General Specifications
Driver Complement
6"x8"(152mmx203mm) Subwoofer
Amplifier Power
100Wrms; 200W Max
Frequency Response
30Hz – 150Hz
Fuse
15A
Maximum Current Draw
13 A
Quiescent Current Draw
<600 mA
Input Sensitivity
0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
Crossover Frequency
50 Hz – 150 Hz
Crossover Slope
12 dB/octave
Bass Boost
0dB to + 12dB @ 50Hz
Dimensions (L x W x H)
10-1/4" x 7-11/16" x 2-15/16"(260.0mm x 195.0mm x 74.6mm)
Weight
7.78 lbs (3.53kg)

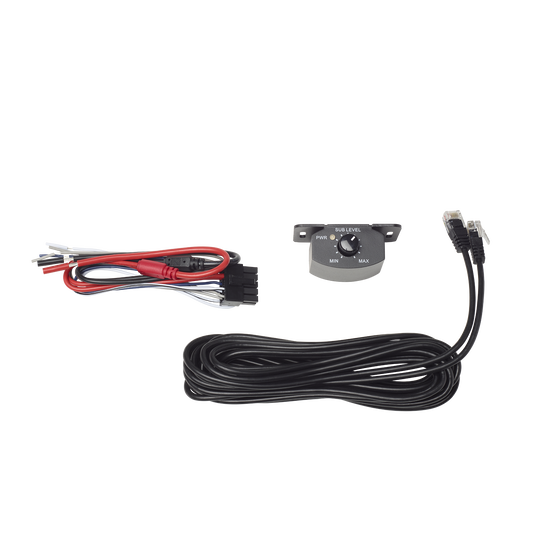

What's in the box?
- 1 x Under seat subwoofer
- 4 x Screws
- 4 x Small metal plate
- 1 x Wiring harness
- 1 x Bass volume remote control(with cable)
- 1 x 15A Fuse
